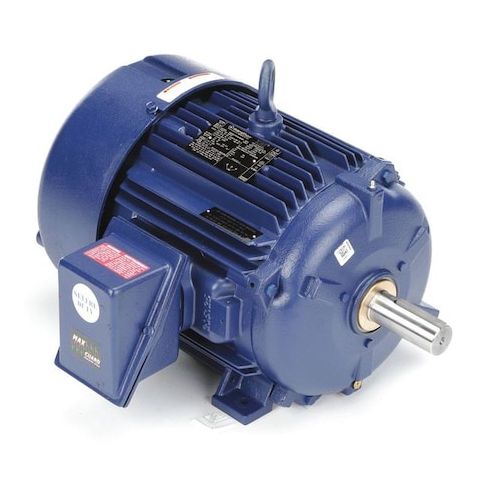

IEEE 841 Motor, 3-Ph, TEFC, 15 HP, T2B MPN:254THFCD9001
IEEE 841 Motor, 3-Ph, TEFC, 15 HP, T2B
This severe duty motor is designed for high-performance applications, offering a 15 HP output at 3,545 RPM. Built to withstand demanding environments, it features a TEFC (Totally Enclosed Fan Cooled) design and meets IEEE 841 standards. Suitable for use in hazardous locations, including Division 2/Zone 2 Class 1, Groups A, B, C, and D, this motor provides reliable operation in temperatures up to 40°C. Its 1.15 service factor ensures efficient operation, making it ideal for applications such as heavy industry, manufacturing, and oil and gas exploration, where consistent performance is critical.
Top product features:
- Three-phase design for efficient operation
- Severe duty motor for high-performance applications
- Thermal protection not included for user-installed options
Top product applications:
- Pumps
- Conveyors
- Crushers
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 3,545 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 17.8 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 349.00
Product info last updated on February 28, 2026 10:42am UTC
Category: Motors
