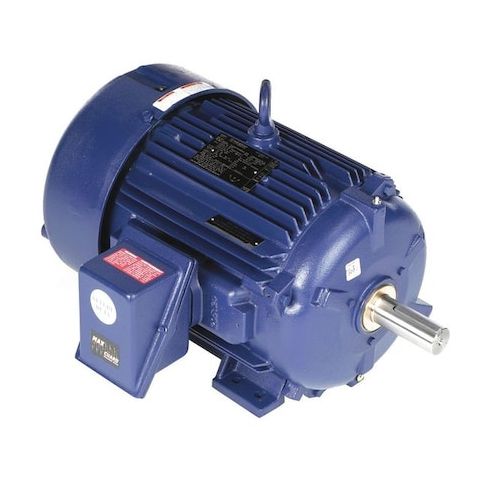

IEEE 841 Motor, 3-Ph, TEFC, 20 HP, T2B MPN:256THFCD9001
IEEE 841 Motor, 3-Ph, TEFC, 20 HP, T2B
The Marathon IEEE 841 Motor is a severe duty, three-phase motor designed for high-performance applications in hazardous locations. Suitable for use at 460V AC, this motor operates at 3,540 RPM and provides 20 horsepower of reliable power. Its compact 256T frame makes it ideal for space-constrained installations, while its 1.15 service factor ensures efficient operation even in demanding conditions. This motor is perfect for applications in hazardous environments, including those in the oil and gas, chemical, and pharmaceutical industries, where its Class 1, Division 2/Zone 2 rating provides added safety and reliability.
Top product features:
- Severe Duty Motor design for high-performance applications
- Three-phase operation for efficient power delivery
- Insulation Class H for high-temperature resistance
Top product applications:
- Heavy Industrial Pumping Systems
- High-Torque Applications such as Mixers and Crushers
- Large Fan and Blower Systems
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 3,540 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 23.7 A, 256T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 20.50
- Package Height: 18.00
- Package Weight: 366.00
Product info last updated on April 7, 2026 5:43pm UTC
Category: Motors
