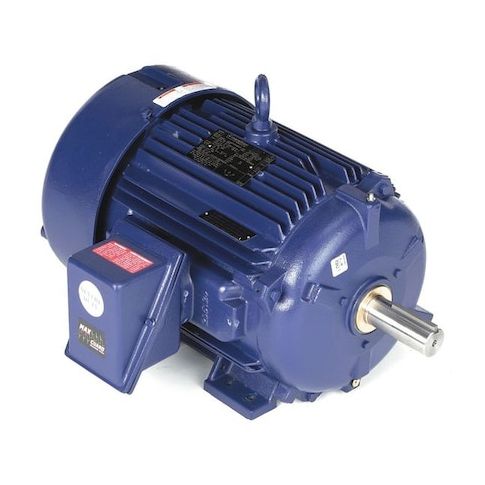

IEEE 841 Motor, 3-Ph, TEFC, 20 HP, T2B MPN:256THFCD9026
IEEE 841 Motor, 3-Ph, TEFC, 20 HP, T2B
This Marathon IEEE 841 Motor is a severe duty motor designed for high-performance applications. Suitable for use in hazardous locations, it features a three-phase design and a 20 HP output. With a nameplate RPM of 1,768, it provides reliable operation in demanding environments. The motor's 256T frame and 60 Hz frequency make it ideal for use in a variety of applications, including those in the oil and gas industry. Its durable design and Class H insulation ensure long-lasting performance, making it a valuable asset for industries requiring high-torque motors.
Top product features:
- Three-phase operation
- Severe duty motor design
- Insulation class H
Top product applications:
- Pumps
- Fans
- Compressors
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,768 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 24.2 A, 256T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 25.00
- Package Height: 26.00
- Package Weight: 406.00
Product info last updated on March 2, 2026 11:31am UTC
Category: Motors
