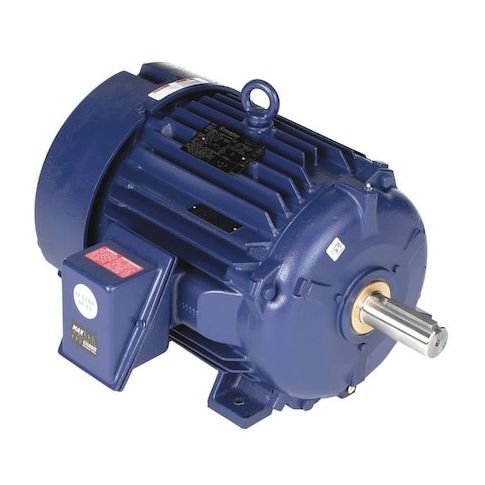

HazardousLocationMotor, 25hp, 1772RPM MPN:284THFCD9026
HazardousLocationMotor, 25hp, 1772RPM
This IEEE 841 Motor from Marathon is a severe duty motor designed for demanding applications. With a 25 HP rating and 1,772 RPM, it's ideal for use in chemical, oil and gas, and other hazardous locations. Its 460V AC voltage and 30.0 A full load amps make it suitable for high-power applications. The motor's 284T frame and Class H insulation ensure reliability and durability. Use it in industries such as water treatment, pulp and paper, and power generation. Benefits include increased efficiency, reduced downtime, and improved safety. Applications include pumps, fans, and compressors in severe duty environments.
Top product features:
- Three Phase Design
- Severe Duty Capability
- Thermal Protection None
Top product applications:
- Pumps
- High-Pressure Compressors
- Fans
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 25 hp HP, Nameplate RPM 1,772 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 30.0 A, 284T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.50
- Package Weight: 489.00
Product info last updated on February 28, 2026 5:58pm UTC
Category: Motors
