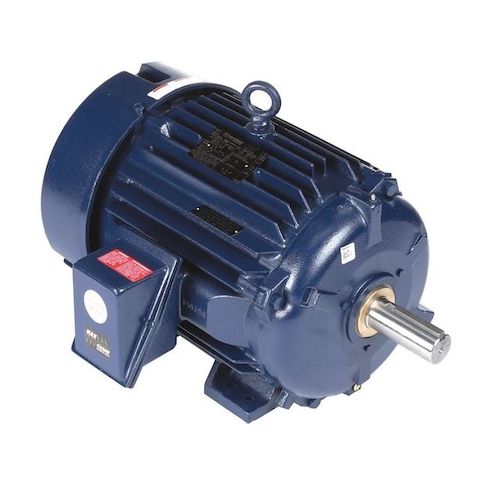

IEEE 841 Motor, 3-Ph, TEFC, 30 HP, T2B MPN:286THFCD9026
IEEE 841 Motor, 3-Ph, TEFC, 30 HP, T2B
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 35.5 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.51
- Package Weight: 528.00
Product info last updated on January 21, 2026 4:13am UTC
Category: Motors
