IEEE 841 Motor, 3-Ph, TEFC, 40 HP, T2B MPN:324THFCD9026
IEEE 841 Motor, 3-Ph, TEFC, 40 HP, T2B

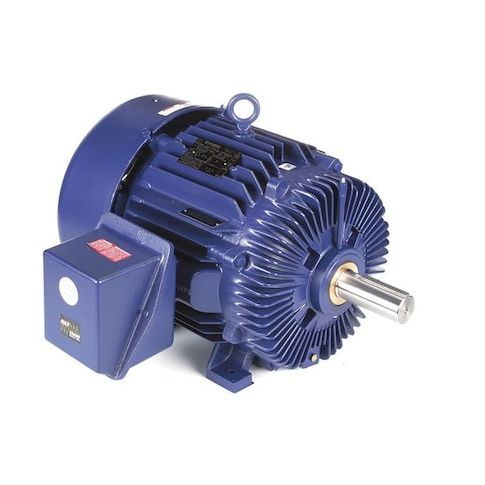

This Marathon IEEE 841 Motor is a severe-duty, three-phase, 40 HP motor designed for heavy industrial applications. Suitable for use in hazardous locations, it meets Class Division 2/Zone 2 requirements. The motor operates at 1,782 RPM and 60 Hz, with a maximum ambient temperature of 40°C. Its 324T frame and 1.15 service factor ensure reliable performance. With a Class H insulation rating, this motor is ideal for applications where high temperatures and heavy loads are present, such as in oil and gas, chemical, and food processing industries. Its compact design and durable construction make it a reliable choice for demanding environments.
Top product features:
- Three-phase motor design
- Severe duty motor for high-performance applications
- Thermal protection class H insulation
Top product applications:
- Heavy Industry Machinery
- Chemical Processing Plants
- Oil and Gas Refineries
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 40 hp HP, Nameplate RPM 1,782 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 47.5 A, 324T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 39.00
- Package Width: 22.00
- Package Height: 24.00
- Package Weight: 710.00
Product info last updated on February 20, 2026 6:45pm UTC
Category: Motors
