General Purpose Mtr, 3-Ph, TEFC, 75 HP MPN:365TSTFCD6501

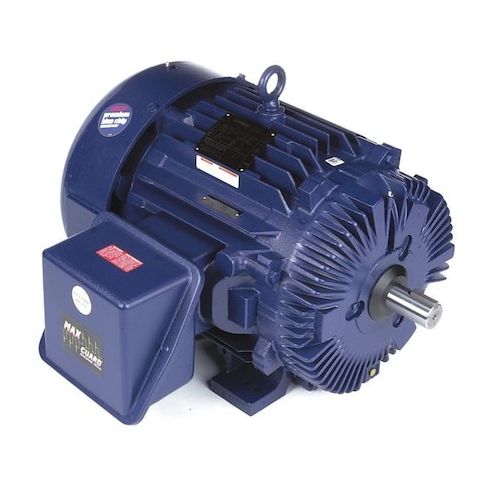

General Purpose Mtr, 3-Ph, TEFC, 75 HP
This Marathon 75 HP three-phase motor is designed for severe duty applications, featuring a totally enclosed fan cooled (TEFC) enclosure and rigid base mounting for added stability. With a high efficiency rating of 94.5% and a service factor of 1.15, it provides reliable operation in demanding environments. Suitable for use in industrial settings, such as manufacturing and processing facilities, this motor is also CSA certified and UL listed for added assurance. Its compact design and durable construction make it an ideal choice for applications requiring high power and reliability, including pumps, fans, and compressors.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Pumping Systems
- Heavy-Duty Fans and Blowers
- Large Industrial Compressors
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 75 HP, Nameplate RPM 3570 rpm, Frame 365TS, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 84.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 37.88
- Package Width: 31.88
- Package Height: 26.50
- Package Weight: 988.00
Product info last updated on March 24, 2026 3:01pm UTC
Category: Motors
