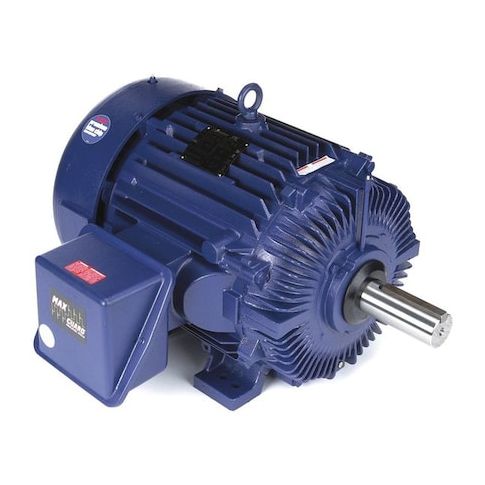

Three-Phase Severe Duty Motor, 100 hp HP, 405T Frame, 460V AC Voltage, 1, 785 RPM Nameplate RPM MPN:405TTFCD6536
Three-Phase Severe Duty Motor, 100 hp HP, 405T Frame, 460V AC Voltage, 1, 785 RPM Nameplate RPM
This severe duty motor is designed for use in high-demand applications where reliability and efficiency are crucial. With a 100 hp rating and 1,785 RPM, it's ideal for heavy-duty processes such as manufacturing, oil and gas, and mining. The totally enclosed fan-cooled design ensures optimal performance in extreme temperatures and environments. Its 1.15 service factor and 60 Hz operation make it suitable for continuous duty cycles. Suitable for use in hazardous locations, this motor meets Class I, Division 2 requirements, making it a versatile and dependable choice for a wide range of severe duty applications.
Top product features:
- Three-Phase Design provides efficient power distribution and motor control.
- Totally Enclosed Fan Cooled Enclosure protects the motor from environmental contaminants and reduces noise levels.
- Continuous Duty Cycle allows for uninterrupted operation under heavy loads.
Top product applications:
- Heavy Industry Operations
- Chemical Processing Plants
- Pulp and Paper Mills
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 100 hp HP, Nameplate RPM 1,785 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 113 A, 405T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class Class I, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 28.89
- Package Weight: 1330.00
Product info last updated on February 14, 2026 10:05pm UTC
Category: Motors
