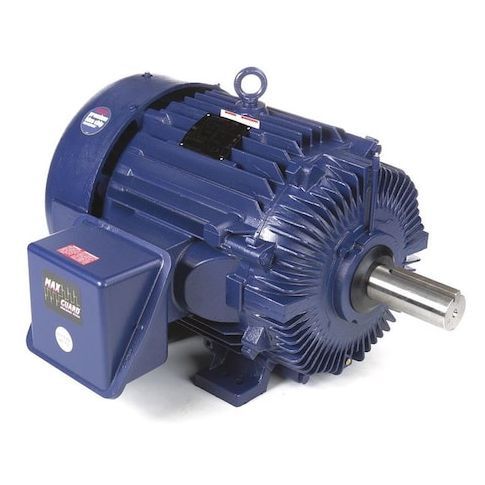

General Purpose Mtr, 3-Ph, TEFC, 75 HP MPN:405TTFCD6586
General Purpose Mtr, 3-Ph, TEFC, 75 HP
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 75 hp HP, Nameplate RPM 1,188 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 89.0 A, 405T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class H, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T2B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 28.89
- Package Weight: 1280.00
Product info last updated on March 4, 2026 3:03am UTC
Category: Motors
