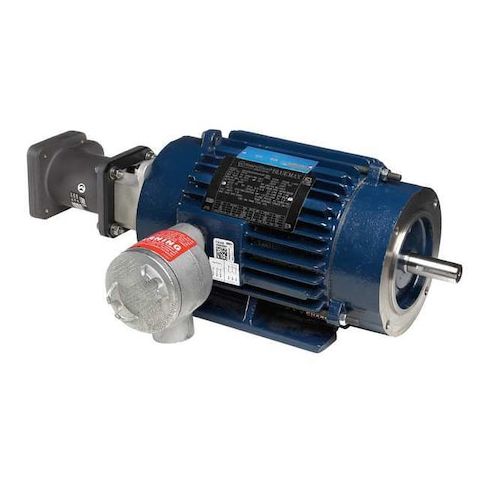

Vector Motor, 15 HP, 3600 rpm, 230/460V MPN:256THEN17031
Vector Motor, 15 HP, 3600 rpm, 230/460V
Vector Motor, Three Phase, Motor Design Three-Phase, 15 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 36/18-30/15 A, 256TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 20.41
- Package Weight: 432.00
Product info last updated on March 1, 2026 2:43am UTC
Category: Motors
