CC Pump Motor, 3-Phase, 15 HP, 1750 rpm MPN:254TTDBD6037

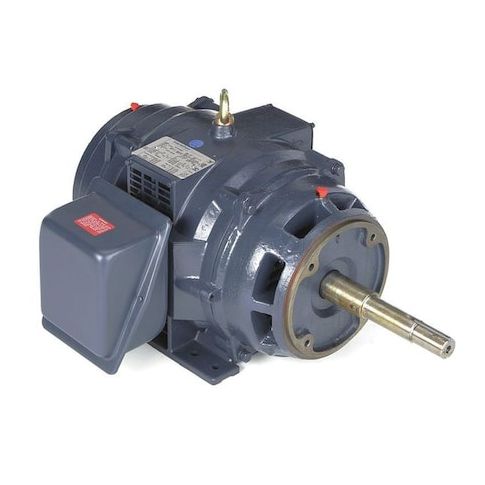

CC Pump Motor, 3-Phase, 15 HP, 1750 rpm
The Marathon CC Pump Motor is a reliable and efficient solution for demanding applications. With a 15 HP, 3-phase design and 1750 rpm operation, this motor is perfect for continuous duty cycles in pump applications. Its close-coupled design and inverter-rated capabilities make it ideal for variable torque and constant torque applications, providing a 10:1 and 2:1 ratio respectively. Built with durable ball bearings and a robust frame, this motor can withstand harsh environments and meet the demands of heavy-duty use. Suitable for a wide range of industries, including water treatment, chemical processing, and oil and gas, this motor is a trusted choice for reliable performance.
Top product features:
- Close-coupled design for improved efficiency and reduced footprint
- Ball bearings for smooth and quiet operation
- 3-phase motor design for high power output and flexibility
Top product applications:
- Pump
- Motor Bearing
- Inverter Rated
Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 254JP, Hz 60 Hz, Full Load Amps 37.5/18.8, Height 13 1/2 in, HP 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 19 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 400.00
Product info last updated on February 10, 2026 4:56pm UTC
Category: Motors
