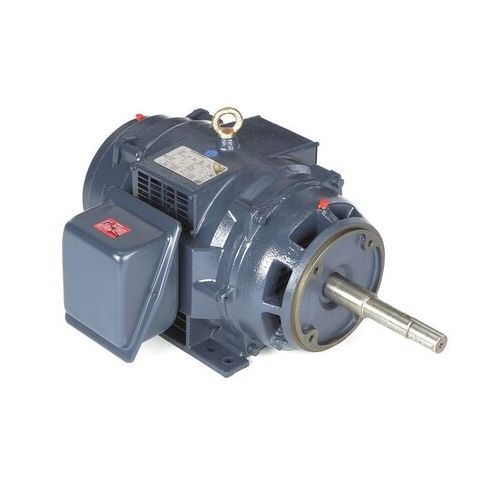

CC Pump Motor, 3-Phase, 25 HP, 3450 rpm MPN:256TTDBD6012
CC Pump Motor, 3-Phase, 25 HP, 3450 rpm
The Marathon CC Pump Motor is a reliable and efficient solution for demanding applications. Designed for continuous operation, this 25 HP motor delivers a duty cycle of 3450 rpm, making it ideal for use in pumps, water treatment facilities, and other industrial settings. With a 10:1 variable torque and 2:1 constant torque rating, it provides smooth and consistent performance. The motor's inverter-rated design ensures optimal efficiency and reduced energy consumption. Its compact close-coupled design and durable ball bearings make it a reliable choice for applications requiring high performance and minimal maintenance.
Top product features:
- Close-coupled design for compact installation
- Ball bearings for smooth and reliable operation
- Inverter-rated for variable torque applications
Top product applications:
- Pump
- Motor Application
- Inverter Rated Motor
Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 59.5/29.7, Height 13 1/2 in, HP 25, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 350.00
Product info last updated on March 24, 2026 8:08pm UTC
Category: Motors
