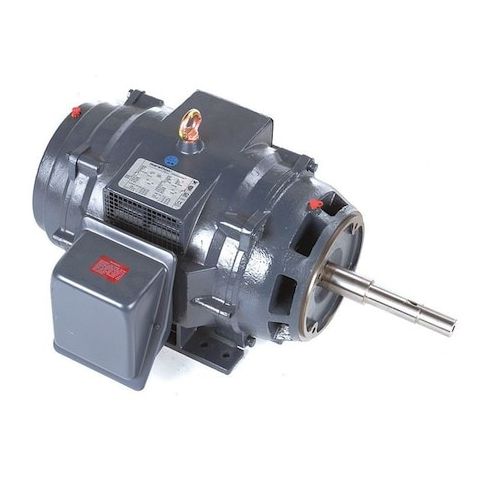

CC Pump Motor, 3-Phase, 20 HP, 1750 rpm MPN:256TTDBD6037
CC Pump Motor, 3-Phase, 20 HP, 1750 rpm
The Marathon CC Pump Motor is a high-performance, 3-phase motor designed for continuous duty cycles. With a powerful 20 HP rating and 1750 rpm speed, it's ideal for demanding applications such as water treatment, chemical processing, and oil and gas operations. Its close-coupled design and ball bearings ensure efficient operation and long motor life. The motor is inverter-rated for variable torque applications and features a robust frame design for maximum reliability. Its compact size and easy installation make it a great choice for new or replacement motor needs in industrial settings.
Top product features:
- The motor is designed for continuous duty cycle operation.
- The motor is inverter rated with a variable torque rating of 10:1.
- The motor has ball bearings for reduced friction and increased efficiency.
Top product applications:
- Pump
- Inverter
- Continuous Duty Cycle
Close-Coupled Pump Motor, Body Dia. 11.8 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 48.5/24.3, Height 13 1/2 in, HP 20, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 20 3/4 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 24.00
- Package Height: 25.00
- Package Weight: 400.00
Product info last updated on March 24, 2026 4:01pm UTC
Category: Motors
