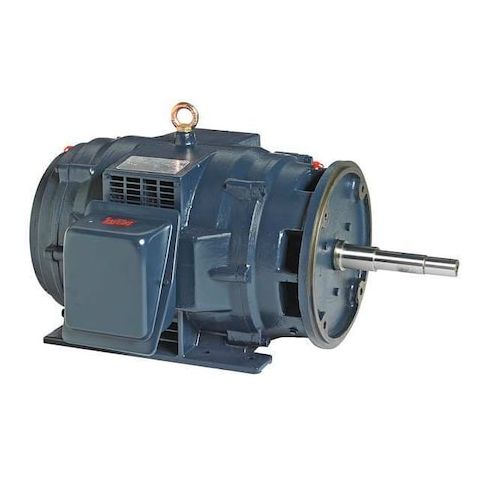

CC Pump Motor, 3-Phase, 50 HP, 3572 rpm MPN:324TTDBD6012
CC Pump Motor, 3-Phase, 50 HP, 3572 rpm
This 50 HP 3-phase close-coupled pump motor from Marathon is designed for demanding applications, offering NEMA Premium efficiency and a 10:1 variable torque inverter rating. Suitable for continuous duty cycles, it features a durable ball-bearing design and a robust frame. The motor is ideal for use in industrial pump applications, providing reliable performance in high-temperature environments up to 40°C. Its compact size and efficient design make it a valuable addition to any industrial operation, reducing energy costs and increasing productivity. Its compact size and efficient design make it a valuable addition to any industrial operation.
Top product features:
- Close-coupled design for efficient heat dissipation
- Ball bearings for smooth and durable operation
- Inverter-rated for variable torque applications
Top product applications:
- Pump
- Motor Application
- Inverter Rated Motor
Close-Coupled Pump Motor, Body Dia. 15.4 in, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 324JP, Hz 60 Hz, Full Load Amps 115.0/57.5, Height 17 15/16 in, HP 50, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 23 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group NEMA Premium Efficient
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 25.42
- Package Weight: 700.00
Product info last updated on February 27, 2026 5:45pm UTC
Category: Motors
