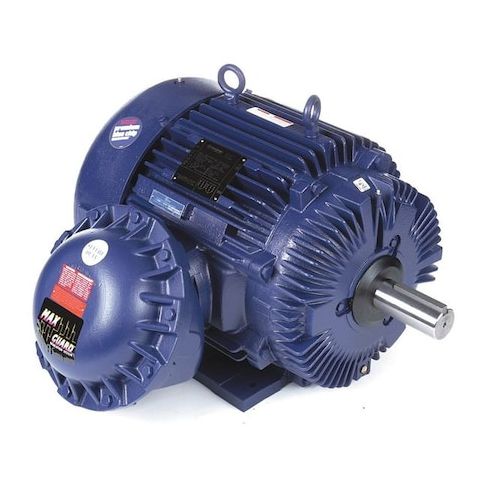

HazLoc Motor, 60 HP, 1780 RPM, 230/460V MPN:364TTGS16536
HazLoc Motor, 60 HP, 1780 RPM, 230/460V
This 60 HP HazLoc Motor from Marathon is designed for use in hazardous locations, meeting Class I, Class II, and Temp. Code T3B standards. Its three-phase design and 1780 RPM make it suitable for a range of applications, including industrial and manufacturing processes. The motor's totally enclosed fan-cooled design ensures efficient operation in high-temperature environments. With a service factor of 1 and a maximum ambient temperature of 40°C, this motor provides reliable performance in demanding conditions. Its compact size and continuous duty cycle make it an ideal choice for applications requiring high power and reliability.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan cooled design for reduced noise and increased durability
- Continuous duty cycle for uninterrupted operation in hazardous locations
Top product applications:
- Pumps and compressors in hazardous locations
- Industrial processes in areas with explosive atmospheres
- Oil and gas facilities requiring Class I and Class II hazardous location motors
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 60 hp HP, Nameplate RPM 1,780 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 138.0/69.0 A, 364T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 39.25
- Package Height: 26.50
- Package Weight: 1076.00
Product info last updated on January 17, 2026 1:05am UTC
Category: Motors
