Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM MPN:256TTFCD6070
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1775 rpm Nameplate RPM

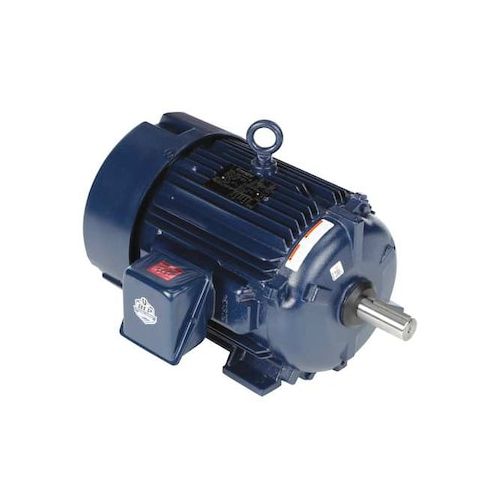

This 20 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high performance and reliability. With a nameplate RPM of 1775 and a nominal efficiency of 94.5%, this motor is ideal for continuous duty operations in environments up to 40°C. Its totally enclosed fan cooled design and cast iron frame ensure durability and long lifespan. Suitable for a wide range of applications, including industrial processes, manufacturing, and commercial facilities, this motor offers a cost-effective solution for demanding operations. Its compact size and rigid base mounting make it easy to integrate into existing systems.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyors and Material Handling
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1775 rpm, Frame 256T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 48.0/24.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 27.00
- Package Height: 25.70
- Package Weight: 346.00
