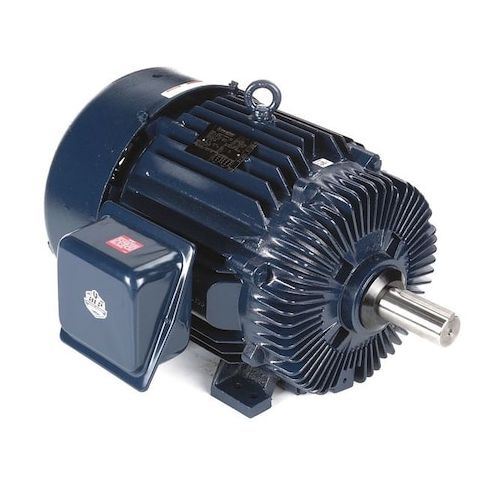

Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM MPN:324TTDBD6070
Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM
This high-performance 40 HP three-phase general purpose motor from Marathon is designed for demanding applications, offering a nameplate RPM of 1780 rpm and a high efficiency of 95.8%. Suitable for continuous duty, it features a rigid base motor mounting type and ball motor bearings for reliable operation. With a service factor of 1.15, it can handle fluctuating loads with ease. Ideal for use in industrial settings, such as manufacturing, processing, and material handling, this motor provides a cost-effective solution for applications requiring high power and efficiency. Its compact design and robust construction make it a reliable choice for a wide range of industries.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and pumping systems
- Conveyors and material handling equipment
- Fans and blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 1780 rpm, Frame 324T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 95.0/47.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95.8 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 38.00
- Package Height: 26.00
- Package Weight: 528.00
Product info last updated on April 7, 2026 6:42pm UTC
Category: Motors
