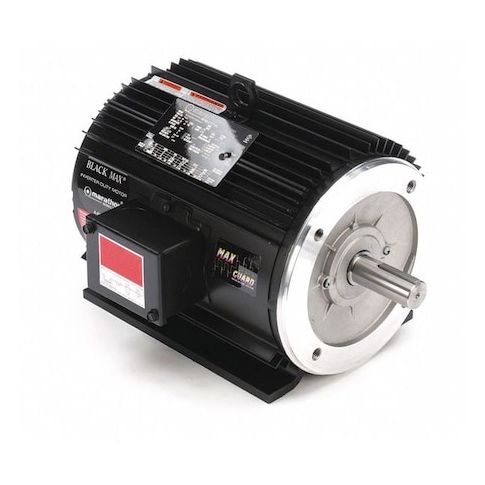

Vector Motor, 5 HP, 14.9 ft.-lb., Ball MPN:184THTY7726
Vector Motor, 5 HP, 14.9 ft.-lb., Ball
The Marathon Vector Motor is a high-performance, 5 HP, three-phase motor designed for demanding applications. With a torque output of 14.9 ft-lb and a speed range of 1,000:1, this motor is ideal for use in applications such as pumps, fans, and conveyor systems. Its NEMA Design A rating ensures reliable operation in a variety of environments, while its continuous duty cycle and maximum operating frequency of 120 Hz make it suitable for use in high-speed applications. The motor's compact design and durable construction make it a great choice for a wide range of industrial and commercial applications.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- The motor design provides a high power-to-weight ratio, enabling compact installation.
- A torque output of 14.9 ft-lb enables the motor to perform tasks that require significant rotational force.
Top product applications:
- Pumps and Pumping Systems
- Conveying Systems
- Fans and Blowers
Vector Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 13.4/6.7 A, 184TC Frame, Torque 14.9 ft-lb, Max. Speed 3,600 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 15.00
- Package Height: 13.30
- Package Weight: 92.60
Product info last updated on February 1, 2026 10:46am UTC
Category: Motors
