Vector Motor, 3 HP, 1755 rpm, 182TC, 575V MPN:182THTY7736
Vector Motor, 3 HP, 1755 rpm, 182TC, 575V

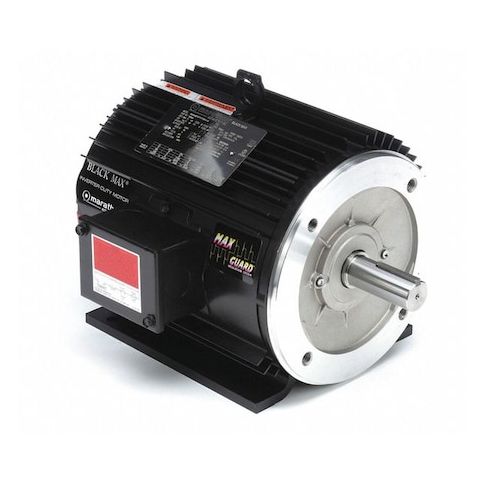

The Marathon Vector Motor is a powerful and efficient solution for demanding applications. Designed for three-phase operation, this 3 HP motor delivers 9.0 ft-lb of torque and operates at a maximum speed of 5,400 RPM. Ideal for use in high-speed applications such as conveyor systems, pumps, and fans, the Vector Motor provides continuous duty cycle and is suitable for temperatures up to 104°F. With a 1,000:1 speed range, this motor offers flexibility and versatility in a wide range of industries, including manufacturing, oil and gas, and food processing. Its compact design and high performance make it a reliable choice for heavy-duty applications.
Top product features:
- Three-phase motor design
- Continuous duty cycle
- Torque output of 9 ft-lb
Top product applications:
- Conveyor Systems
- Material Handling Equipment
- Centrifugal Pumps
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 575V AC, Full Load Amps 3.3 A, 182TC Frame, Torque 9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.31
- Package Width: 13.38
- Package Height: 13.50
- Package Weight: 89.00
Product info last updated on January 27, 2026 7:53am UTC
Category: Motors
