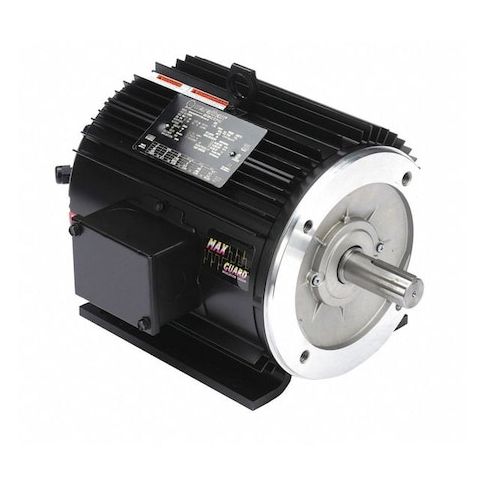

Vector Motor, 3 HP, 9.0 ft.-lb., 60 Hz, Ball MPN:182THTY17041
Vector Motor, 3 HP, 9.0 ft.-lb., 60 Hz, Ball
The Marathon Vector Motor is a high-performance, 3 HP, 3-phase motor designed for demanding applications. With a nameplate RPM of 1,755 and a speed range of 1,000:1, it provides efficient and reliable operation in a variety of settings. Ideal for use in manufacturing, processing, and material handling, this motor's 9 ft-lb of torque and continuous duty cycle make it well-suited for applications requiring high torque and low vibration. Its compact design and rugged construction also make it a great choice for applications in harsh environments, including those with high ambient temperatures.
Top product features:
- Three Phase Design
- Nameplate RPM 1,755
- Speed Range 1,000:1
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and conveyor systems
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 82.0/4.1 A, 182TC Frame, Torque 9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.31
- Package Width: 13.38
- Package Height: 13.50
- Package Weight: 80.00
Product info last updated on February 1, 2026 11:42am UTC
Category: Motors
