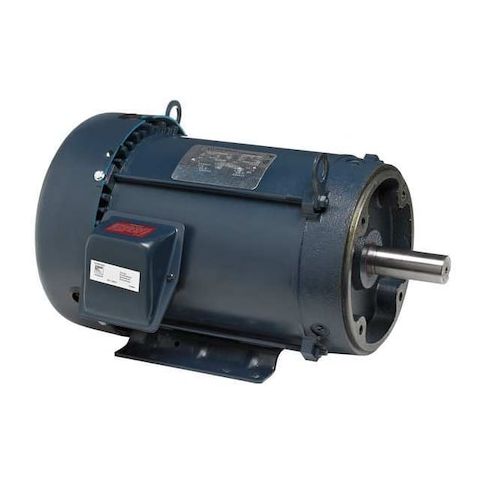

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM MPN:184TTFBD6032
Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 575V AC Voltage, 1765 rpm Nameplate RPM
This 5 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. With a nameplate RPM of 1765, it provides reliable and efficient operation in continuous duty applications. The motor's totally enclosed fan cooled design and steel frame ensure durability and protection from harsh environments. Its high efficiency of 88.5% and service factor of 1.15 make it an ideal choice for demanding applications. Suitable for use in various industries, including food processing, textile manufacturing, and chemical processing.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and protected environment for the motor components.
- Ball Motor Bearings ensure smooth and quiet operation.
- CW/CCW Motor Shaft Rotation allows for flexible installation and application flexibility.
Top product applications:
- Industrial Automation
- Pumping Systems
- Material Handling
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1765 rpm, Frame 184TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 110.00
Product info last updated on April 11, 2026 10:07pm UTC
Category: Motors
