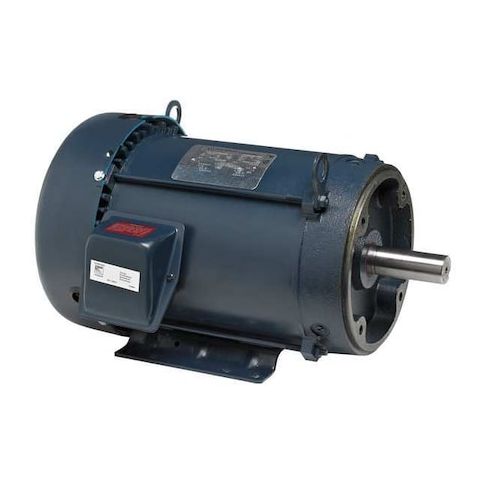

Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 575V AC Voltage, 3525 rpm Nameplate RPM MPN:184TTFBD6007
Three-Phase General Purpose Motor, 5 HP, 184TC Frame, 575V AC Voltage, 3525 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 3525 rpm, Frame 184TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.50
- Package Width: 16.81
- Package Height: 14.00
- Package Weight: 95.00
Product info last updated on March 9, 2026 1:23am UTC
Category: Motors
