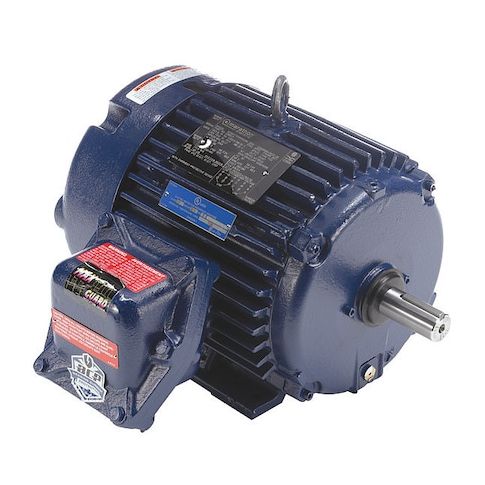

HazLoc Motor, 3 HP, 1765 RPM, 208-230/460V MPN:182TTGCD6541
HazLoc Motor, 3 HP, 1765 RPM, 208-230/460V
The Marathon HazLoc Motor is a reliable and efficient solution for hazardous location applications. This three-phase motor is designed to operate in challenging environments, meeting Class I, Class II, and T3B temperature code requirements. With a continuous duty cycle and totally enclosed fan cooled design, it provides reliable operation and long lifespan. Suitable for use in a variety of industries, including oil and gas, chemical processing, and pharmaceutical manufacturing, this motor offers a safe and efficient solution for applications requiring hazardous location certification. Its compact design and high power output make it an ideal choice for a range of applications.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Three-Phase design allows for efficient power distribution and reduced energy consumption.
- Thermal Protection via T-Stat ensures the motor operates within a safe temperature range.
Top product applications:
- Pumps in hazardous locations such as chemical plants or oil refineries
- Fans in hazardous areas such as grain silos or coal mines
- Compressors in areas with explosive atmospheres such as gas stations or fuel storage facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,765 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 8.0/4.0 A, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 16.00
- Package Height: 19.50
- Package Weight: 148.00
Product info last updated on March 13, 2026 1:50pm UTC
Category: Motors
