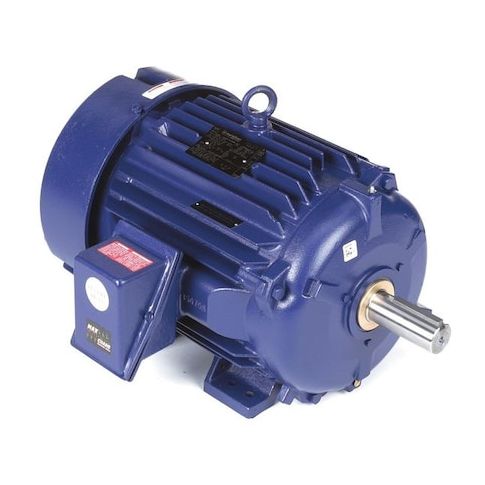

Three-Phase Severe Duty Motor, 15 hp HP, 286T Frame, 460V AC Voltage, 875 RPM Nameplate RPM MPN:286THFNA19101
Three-Phase Severe Duty Motor, 15 hp HP, 286T Frame, 460V AC Voltage, 875 RPM Nameplate RPM
This severe duty motor from Marathon is designed for high-performance applications in hazardous locations. With a 15 hp rating and 875 RPM nameplate speed, it provides reliable operation in demanding environments. Suitable for use in areas classified as Division 2/Zone 2, Class 1, Groups A, B, C, and D, this motor meets the needs of industries such as oil and gas, chemical processing, and manufacturing. Its 1.15 service factor and Class F insulation ensure efficient and long-lasting performance, making it an ideal choice for applications where downtime is costly. Ships in 15 days from the US.
Top product features:
- Three-phase design for efficient power distribution
- Severe duty rating for high-torque applications
- Thermal protection not included, requiring separate monitoring and maintenance
Top product applications:
- Heavy Industry Applications
- Chemical Processing Plants
- Oil and Gas Refineries
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 875 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 22.0 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Hazardous Location Class Hazardous Location Class Division 2/Zone 2 Class 1,Groups A,B,C,D, Temp. Code T2B
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 24.51
- Package Weight: 326.00
Product info last updated on February 22, 2026 9:05am UTC
Category: Motors
