Vector Motor, 25 HP, 74.2 lb-ft, 575V MPN:284THTNA7036

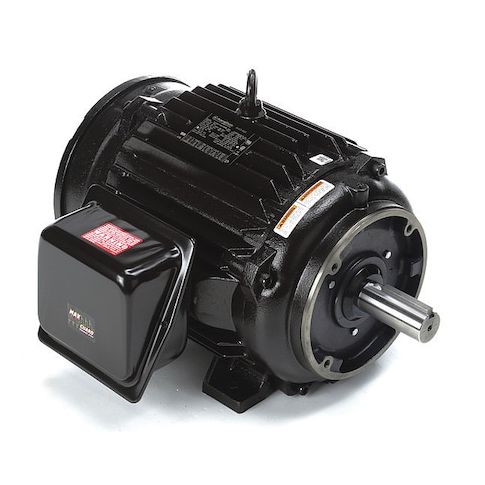

Vector Motor, 25 HP, 74.2 lb-ft, 575V
This high-performance Vector Motor from Marathon is designed for demanding applications that require a reliable and efficient power source. With a 25 HP rating and 74.2 lb-ft of torque, it's ideal for use in heavy-duty industries such as manufacturing, oil and gas, and material handling. The motor's continuous duty cycle and NEMA Design A rating ensure it can operate in tough environments, while its 1,000:1 speed range provides flexibility and precision. Suitable for applications that require high power and reliability, this motor is a valuable addition to any industrial operation.
Top product features:
- Three-phase design
- Continuous duty cycle
- Torque output of 74.2 ft-lb
Top product applications:
- Conveyor Belt System
- Pumping Station
- Water Treatment Plant
Vector Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 575V AC, Full Load Amps 24.8 A, 284TC Frame, Torque 74.2 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 36.00
- Package Height: 21.89
- Package Weight: 379.00
Product info last updated on January 31, 2026 9:31am UTC
Category: Motors
