Vector Motor, 3-Phase, 30HP, 230/460V MPN:326THFPA8086

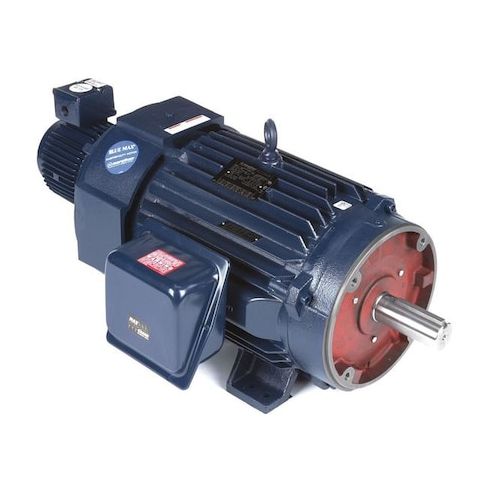

Vector Motor, 3-Phase, 30HP, 230/460V
The Marathon Vector Motor is a high-performance, 3-phase motor designed for demanding applications. With a 30 HP rating and a speed range of 2,000:1, this motor is ideal for use in manufacturing, processing, and material handling industries. Its totally enclosed fan-cooled design ensures reliable operation in harsh environments, while its continuous duty cycle and NEMA Design B rating make it suitable for applications with high usage demands. The motor's compact size and efficient design also make it a cost-effective solution for a variety of applications, including conveyor systems, pumps, and fans.
Top product features:
- Three-phase motor design
- Totally enclosed fan-cooled enclosure
- Speed range of 2,000:1
Top product applications:
- Industrial Automation
- Pumps and Piping Systems
- Conveyor Systems
Vector Motor, Three Phase, Motor Design 3-Phase, 30 HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 80.5/40.0 A, 326TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 50.00
- Package Width: 26.00
- Package Height: 23.63
- Package Weight: 550.00
Product info last updated on February 1, 2026 11:17am UTC
Category: Motors
