Vector Motor, 3-Phase, 20HP, 230/460V MPN:286THFPA8086

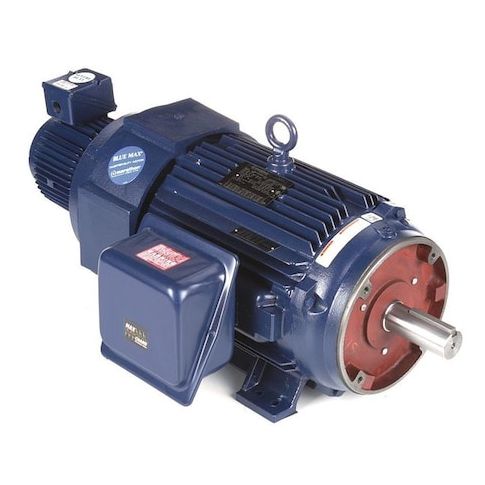

Vector Motor, 3-Phase, 20HP, 230/460V
This 20HP 3-phase vector motor from Marathon is designed for demanding applications that require high efficiency and reliability. With a wide speed range of 2,000:1 and a max operating frequency of 90 Hz, it's ideal for use in industrial settings where continuous operation is necessary. The totally enclosed fan-cooled design ensures optimal performance in harsh environments. Suitable for applications such as pumps, fans, and conveyor systems, this motor provides a high level of torque and power while minimizing energy consumption. Its compact size and durable construction make it a reliable choice for heavy-duty use.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Fan-Cooled enclosure for reliable operation in harsh environments
- Speed Range of 2,000:1 for adaptable motor performance
Top product applications:
- Pumps and Compressors
- High-speed centrifugal compressors and pumps
- Industrial machinery
Vector Motor, Three Phase, Motor Design 3-Phase, 20 HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 52.5/26.2 A, 286TC Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 26.00
- Package Height: 19.37
- Package Weight: 660.00
Product info last updated on January 17, 2026 11:02pm UTC
Category: Motors
