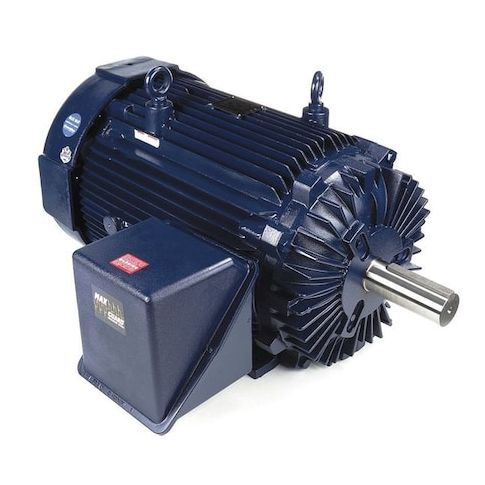

Vector Motor, 3-Phase, 250HP, 460V MPN:449THFS8036

Vector Motor, Three Phase, Motor Design 3-Phase, 250 HP, Nameplate RPM 1,788, No. of Speeds 1, Voltage 460V AC, Full Load Amps 280 A, 447/9T Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
