Vector Motor, 3-Phase, 25HP, 230/460V MPN:284THFPA8086

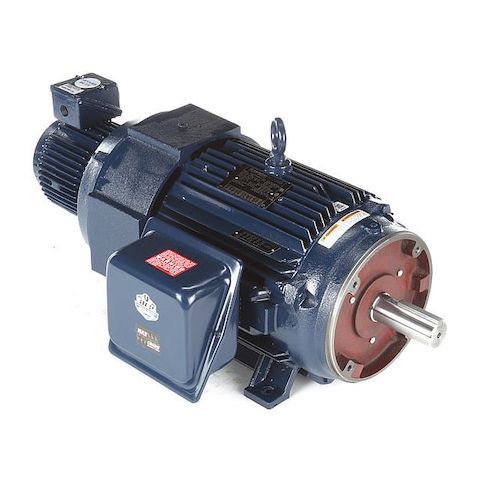

Vector Motor, 3-Phase, 25HP, 230/460V
This high-performance 25HP 3-phase vector motor from Marathon is designed for demanding applications that require reliability and efficiency. Built for continuous operation, it features a totally enclosed fan-cooled design and a robust 284TC frame. With a wide speed range of 2,000:1 and a maximum operating frequency of 90 Hz, it's ideal for use in heavy-duty industries such as manufacturing, oil and gas, and metalworking. Its compact size and durable construction make it easy to integrate into existing systems, while its high efficiency and low maintenance requirements minimize downtime and operating costs.
Top product features:
- Three-phase operation
- Totally enclosed fan-cooled design
- Continuous duty cycle
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and material handling systems
Vector Motor, Three Phase, Motor Design Three-Phase, 25 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 63.0/31.5 A, 284TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 26.00
- Package Height: 19.37
- Package Weight: 470.00
Product info last updated on January 17, 2026 8:34pm UTC
Category: Motors
