Vector Motor, 3-Phase, 60HP, 230/460V MPN:404THFS8092

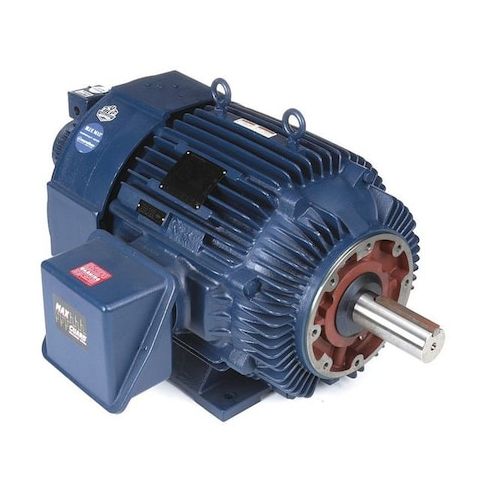

Vector Motor, 3-Phase, 60HP, 230/460V
This 60HP 3-phase vector motor from Marathon is designed for high-performance applications requiring continuous operation. With a speed range of 2,000:1 and a max speed of 1,200 RPM, it's ideal for use in heavy-duty industrial settings such as manufacturing, material handling, and oil and gas operations. The totally enclosed fan-cooled design ensures reliable operation in harsh environments, while the Class H insulation and thermal protection provide added safety and durability. Its compact size and high-torque output make it a versatile solution for a wide range of applications, including conveyor systems, pumps, and compressors.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan-Cooled Enclosure
- Speed Range of 2,000:1
Top product applications:
- Industrial Pumping Systems
- High-Speed Manufacturing Equipment
- Large Capacity Fans and Ventilation Systems
Vector Motor, Three Phase, Motor Design 3-Phase, 60 HP, Nameplate RPM 1,180, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 142.0/71.0 A, 404TC Frame, Max. Speed 1,200 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 56.00
- Package Width: 46.00
- Package Height: 29.42
- Package Weight: 1339.00
Product info last updated on January 17, 2026 9:17pm UTC
Category: Motors
