Vector Motor, 3-Phase, 25HP, 230/460V MPN:324THFPA8086

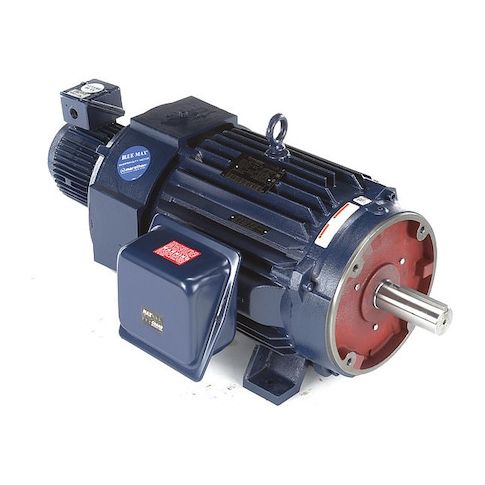

Vector Motor, 3-Phase, 25HP, 230/460V
The Marathon Vector Motor is a high-performance, 3-phase motor designed for demanding industrial applications. With a 25HP rating and a wide speed range of 2,000:1, this motor is ideal for use in conveyor systems, pumps, and other machinery that require reliable and efficient operation. Its totally enclosed fan-cooled design ensures optimal performance in harsh environments, while its NEMA Design B rating meets the highest standards for motor durability and safety. Suitable for use in a variety of industries, including manufacturing, food processing, and materials handling, this motor is a reliable choice for applications that require continuous operation.
Top product features:
- Three-phase operation
- Totally enclosed fan-cooled design
- NEMA Design B motor design
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 67.0/33.5 A, 324TC Frame, Max. Speed 1,800 RPM, Speed Range 2,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.88
- Package Width: 26.00
- Package Height: 23.75
- Package Weight: 633.00
Product info last updated on January 17, 2026 9:22pm UTC
Category: Motors
