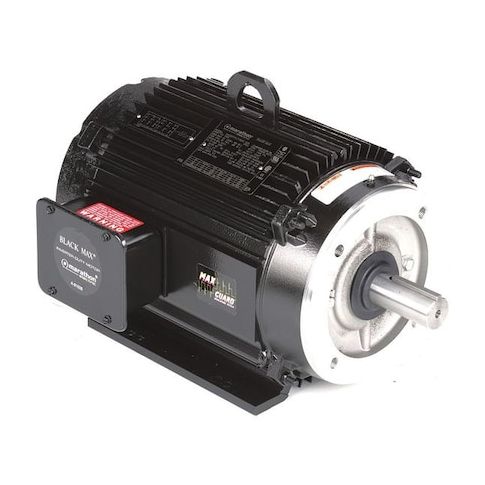

Vector Motor, 22.3 lb-ft, 7.5 HP, 230/460 V MPN:213THTL7726
Vector Motor, 22.3 lb-ft, 7.5 HP, 230/460 V
The Marathon Vector Motor is a high-performance, three-phase motor designed for demanding applications. With 7.5 HP and 22.3 lb-ft of torque, it delivers efficient power and reliable operation. Suitable for use in industrial settings, this motor is ideal for applications requiring continuous duty cycles, such as conveyor systems, pumps, and fans. Its NEMA Design A rating ensures high efficiency and reliability, while its Class F insulation and 104°F maximum ambient temperature rating provide added durability. Available in a compact 213TC frame, this motor is easy to integrate into existing systems, making it a versatile solution for a wide range of industrial applications.
Top product features:
- Three-phase operation
- Torque of 22.3 ft-lb
- Continuous duty cycle
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and packaging machinery
Vector Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 21.0/10.5 A, 213TC Frame, Torque 22.3 ft-lb, Max. Speed 4,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.80
- Package Width: 16.80
- Package Height: 14.60
- Package Weight: 130.00
Product info last updated on January 31, 2026 9:19am UTC
Category: Motors
