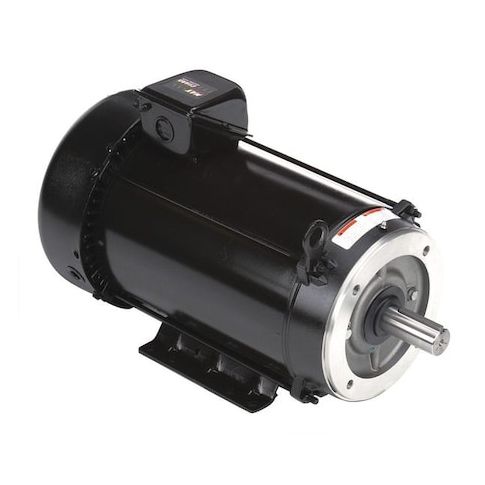

Vector Motor, 30.0 lb-ft, 10 HP, 230/460 V MPN:215THFW7726
Vector Motor, 30.0 lb-ft, 10 HP, 230/460 V
The Marathon Vector Motor is a high-performance, 10 HP, three-phase motor designed for demanding applications. With a nameplate RPM of 1,770 and speed range of 1,000:1, it offers efficient and precise control. Suitable for use in applications requiring continuous duty, it features a maximum ambient temperature of 104°F and a motor service factor of 1. Its NEMA Design B rating ensures reliable operation in a wide range of industrial environments. Ideal for use in manufacturing, processing, and material handling systems, this motor provides a durable and long-lasting solution for applications requiring high torque and precision control.
Top product features:
- Three-phase operation
- Continuous duty cycle
- NEMA Design B rating
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design 3-Phase, 10 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 27.6/13.8 A, 215TC Frame, Torque 30 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 17.00
- Package Height: 17.00
- Package Weight: 162.00
Product info last updated on February 26, 2026 10:19pm UTC
Category: Motors
