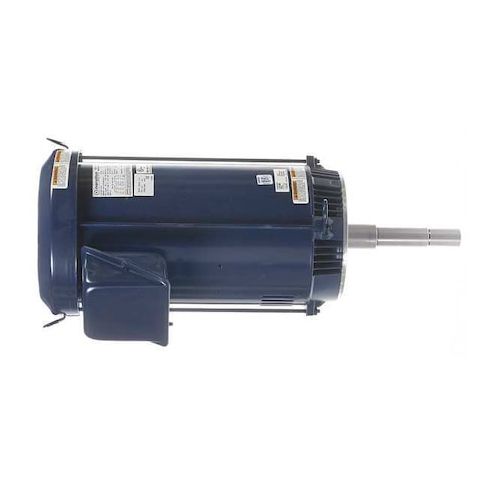

Close-Coupled Pump Motor, 15 HP, 1770 rpm MPN:254TTDR16028
Close-Coupled Pump Motor, 15 HP, 1770 rpm
The Marathon Close-Coupled Pump Motor is a reliable and efficient solution for various industrial applications. Designed for continuous duty cycles, this 15 HP motor operates at 1770 rpm, making it ideal for pumping systems that require high performance and durability. Its compact design and exterior conduit box location provide flexibility and ease of installation. The motor's ball bearings ensure smooth operation and long lifespan. Suitable for a range of industries, including manufacturing, oil and gas, and water treatment, this motor provides a reliable and cost-effective solution for applications requiring high flow rates and pressure.
Top product features:
- Close-coupled design allows for compact installation and reduced space requirements.
- Three-phase motor design provides efficient power delivery for high-performance applications.
- Ball bearings ensure smooth and reliable operation under continuous duty cycles.
Top product applications:
- Pump
- Motor Bearings Ball
- Motor Application Pump
Close-Coupled Pump Motor, Body Dia. 12 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 254JPV, Hz 60/50, Full Load Amps 38.0/18.9, Full Load Amps @ 50Hz 38.0/18.9, Height 12 5/16 in, HP 15, HP @ 50Hz 15, Ins. Class F, Inverter Rated No, Length Less Shaft 19 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.25
- Package Width: 22.25
- Package Height: 18.00
- Package Weight: 284.00
Product info last updated on January 30, 2026 10:21pm UTC
Category: Motors
