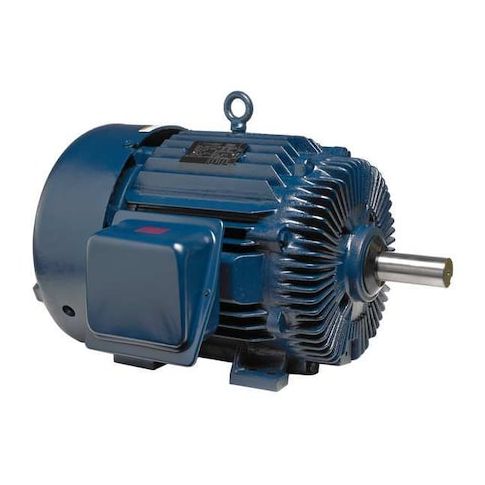

Three-Phase General Purpose Motor, 300 HP, 447/9T Frame, 460V AC Voltage, 1785 rpm Nameplate RPM MPN:449TTFCD6027
Three-Phase General Purpose Motor, 300 HP, 447/9T Frame, 460V AC Voltage, 1785 rpm Nameplate RPM
This 300 HP three-phase general purpose motor from Marathon is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1785 and a 50.5% nominal efficiency, this motor is ideal for use in industrial settings such as manufacturing facilities, power plants, and water treatment plants. Its totally enclosed fan cooled design and rigid base mounting ensure quiet operation and stable performance, while its cast iron frame and ball bearings provide long-lasting durability. Suitable for continuous duty, this motor is a reliable choice for applications that require high power and efficiency.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy loss
- Totally enclosed fan-cooled design provides a safe and reliable operating environment
- Ball bearings enable smooth and quiet motor operation
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyors and Crushers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 300 HP, Nameplate RPM 1785 rpm, Frame 447/9T, Voltage 460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 341.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 50.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 56.00
- Package Width: 46.00
- Package Height: 32.86
- Package Weight: 3550.00
Product info last updated on January 28, 2026 4:06pm UTC
Category: Motors
