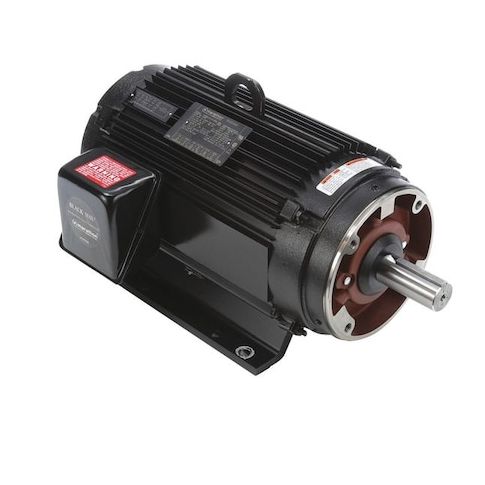

Vector Motor, 33.7 lb-ft, 7.5 HP, 230/460V MPN:254THTL5776
Vector Motor, 33.7 lb-ft, 7.5 HP, 230/460V
This high-performance Vector Motor from Marathon is designed for demanding applications, delivering 7.5 HP and 33.7 lb-ft of torque. Suitable for use in a variety of industries, including manufacturing, oil and gas, and water treatment, this motor operates at 230/460V and features a continuous duty cycle. Its NEMA Design A rating ensures reliable operation in harsh environments, while its 1,000:1 speed range provides flexibility in application design. With a compact 254TC frame and CW/CCW shaft rotation, this motor is ideal for applications requiring high efficiency and reliability, including pumps, fans, and conveyor systems.
Top product features:
- Three phase operation
- Torque of 33.7 lb-ft
- Speed range of 1,000:1
Top product applications:
- Textile Machinery
- Packaging Machinery
- Paper Mill Equipment
Vector Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,170, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 22.0/11.0 A, 254TC Frame, Torque 33.7 ft-lb, Max. Speed 1,200 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 23.00
- Package Height: 22.00
- Package Weight: 205.00
Product info last updated on March 5, 2026 11:43pm UTC
Category: Motors
