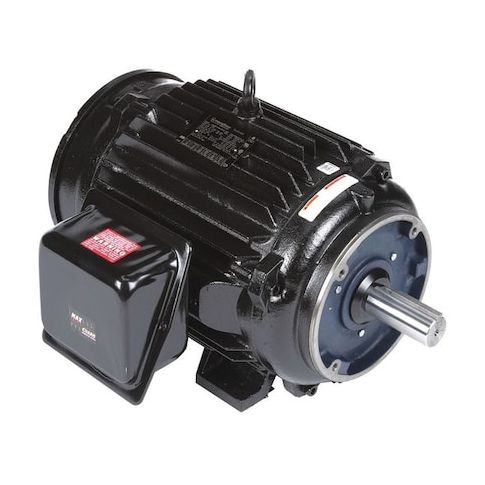

Vector Motor, 89.0 lb-ft, 30 HP, 230/460 V MPN:286THTNA7026
Vector Motor, 89.0 lb-ft, 30 HP, 230/460 V
The Marathon Vector Motor is a high-performance, three-phase motor designed for demanding industrial applications. With a robust 30 HP rating and 89 lb-ft of torque, it can handle heavy loads and provide efficient operation in a variety of settings. Suitable for use in manufacturing, processing, and other high-demand industries, this motor offers a speed range of 1,000:1 and a maximum operating frequency of 120 Hz. Its NEMA Design A construction and Class F insulation ensure reliable performance in temperatures up to 104°F, making it an ideal choice for applications requiring continuous duty cycles.
Top product features:
- Three Phase Operation
- Torque of 89 ft-lb
- Speed Range of 1,000:1
Top product applications:
- Pumps
- Fans
- Conveyors
Vector Motor, Three Phase, Motor Design Three-Phase, 30 HP, Nameplate RPM 1,772, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 74.0/37.0 A, 286TC Frame, Torque 89 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 26.00
- Package Height: 20.95
- Package Weight: 535.00
