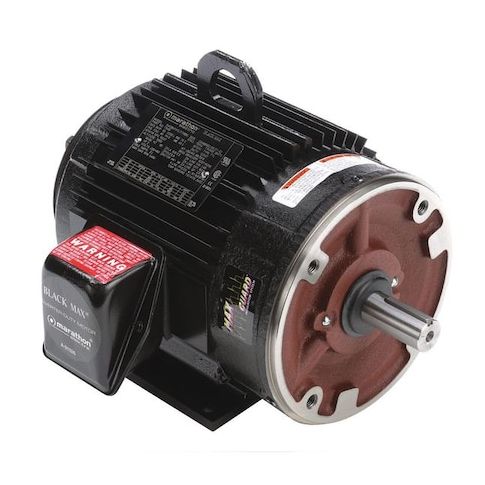

Vector Motor, 9.0 lb-ft, 2 HP, 230/460 V MPN:184THTL7776
Vector Motor, 9.0 lb-ft, 2 HP, 230/460 V
This 2 HP, 9.0 lb-ft Vector Motor from Marathon is designed for high-torque applications in industrial settings. Suitable for use in 230/460V AC environments, it offers a 1,000:1 speed range and a maximum speed of 5,400 RPM. Its continuous duty cycle and NEMA Design A rating make it ideal for demanding operations. The motor's compact 184TC frame and CW/CCW rotation make it easy to integrate into existing systems. Perfect for use in applications such as conveyor systems, pumps, and material handling equipment, this motor provides reliable and efficient performance in a variety of industrial settings.
Top product features:
- Three-phase operation
- 184TC frame design
- Continuous duty cycle
Top product applications:
- Pump applications, such as for chemical or wastewater treatment
- Conveyor systems for material handling
- Fans and blowers for HVAC or industrial ventilation
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,160, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.6/3.3 A, 184TC Frame, Torque 9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.70
- Package Width: 17.40
- Package Height: 15.70
- Package Weight: 86.55
Product info last updated on January 17, 2026 6:38am UTC
Category: Motors
