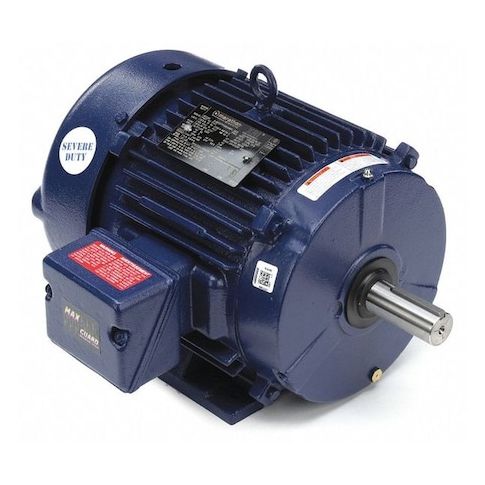

Three-Phase Severe Duty Motor, 5 HP, 230/460V AC Voltage, 215T Frame, 1180 rpm Nameplate RPM MPN:215TTFCD6881
Three-Phase Severe Duty Motor, 5 HP, 230/460V AC Voltage, 215T Frame, 1180 rpm Nameplate RPM
This severe duty motor is designed for high-performance applications in demanding environments. With a 5 HP rating and 1180 rpm, it provides reliable operation in continuous duty cycles. The totally enclosed fan cooled design ensures efficient cooling and extends motor lifespan. Suitable for use in industrial settings, such as manufacturing, material handling, and power generation, this motor offers high efficiency and durability. Its 1.15 service factor and Class H insulation ensure it can withstand extreme temperatures and heavy loads, making it an ideal choice for applications where reliability and performance are paramount.
Top product features:
- Three-Phase Operation allows for efficient power distribution and reduced energy consumption.
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and durable operating environment.
- Ball Motor Bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Manufacturing facilities
- Water treatment plants
- Pumps and compressors
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1180 rpm, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.6/6.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 18.00
- Package Height: 14.38
- Package Weight: 215.00
Product info last updated on March 19, 2026 12:00pm UTC
Category: Motors
