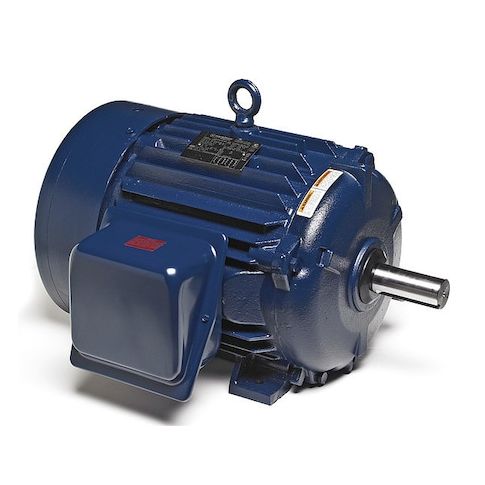

Three-Phase Severe Duty Motor, 10 HP, 460V AC Voltage, 215T Frame, 1762 rpm Nameplate RPM MPN:215TTFCD6526
Three-Phase Severe Duty Motor, 10 HP, 460V AC Voltage, 215T Frame, 1762 rpm Nameplate RPM
This heavy-duty three-phase motor is designed for severe duty applications and provides reliable performance in demanding environments. With a 10 HP rating and 1762 rpm nameplate speed, it's suitable for use in manufacturing, oil and gas, and other industries where high torque and efficiency are required. The totally enclosed fan cooled design and cast iron frame ensure durability and long lifespan. The motor's high efficiency (91.7%) and continuous duty rating make it an ideal choice for applications such as pumps, fans, and compressors, where consistent performance is critical.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Ball Motor Bearings
Top product applications:
- Pumps and compressors in severe duty applications
- Heavy industrial machinery and equipment
- Large power tools and equipment
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1762 rpm, Frame 215T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.70
- Package Width: 21.70
- Package Height: 18.00
- Package Weight: 240.00
Product info last updated on February 26, 2026 11:45pm UTC
Category: Motors
