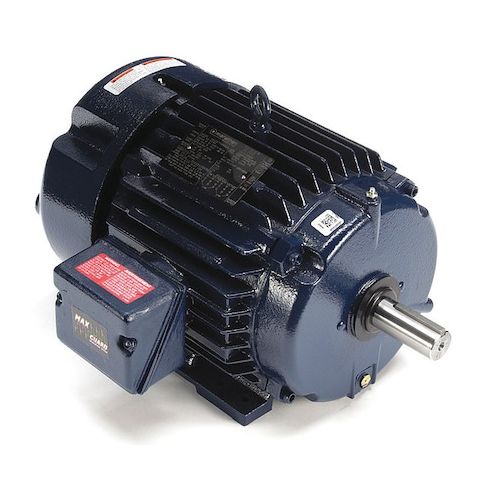

Three-Phase Severe Duty Motor, 7 1/2 HP, 230/460V AC Voltage, 213T Frame, 1765 rpm Nameplate RPM MPN:213TTFCD6531
Three-Phase Severe Duty Motor, 7 1/2 HP, 230/460V AC Voltage, 213T Frame, 1765 rpm Nameplate RPM
This 7 1/2 HP three-phase severe duty motor from Marathon is designed for demanding applications that require high performance and reliability. With a nameplate RPM of 1765 and a voltage range of 230/460V AC, this motor is suitable for use in heavy industry, manufacturing, and oil and gas operations. Its severe duty design and totally enclosed fan cooled motor enclosure ensure efficient operation in harsh environments. The motor's rigid base mounting type and cast iron frame provide a stable and durable foundation for high-torque applications. Its high efficiency and continuous duty rating make it an ideal choice for demanding industrial applications.
Top product features:
- Three-Phase Operation
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and water treatment systems
- Conveyors and material handling equipment
- Centrifuges and other heavy-duty machinery
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1765 rpm, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.0/9.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.20
- Package Width: 22.50
- Package Height: 22.30
- Package Weight: 215.00
Product info last updated on February 11, 2026 12:47pm UTC
Category: Motors
