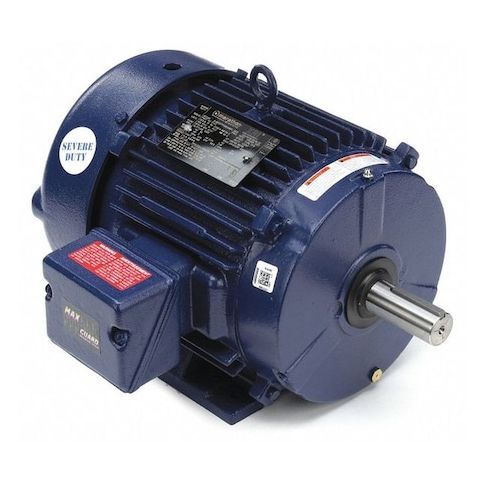

Three-Phase Severe Duty Motor, 7 1/2 HP, 460V AC Voltage, 213T Frame, 1765 rpm Nameplate RPM MPN:213TTFCD6526
Three-Phase Severe Duty Motor, 7 1/2 HP, 460V AC Voltage, 213T Frame, 1765 rpm Nameplate RPM
This Three-Phase Severe Duty Motor is designed for heavy-duty applications requiring continuous operation. Its 7 1/2 HP output and 1765 rpm nameplate speed make it suitable for use in industrial settings such as manufacturing, processing, and material handling. The motor's severe duty design and totally enclosed fan cooled enclosure ensure reliable operation in harsh environments. Its high efficiency and continuous duty rating minimize energy consumption and downtime. Applications include conveyor systems, pumps, and compressors. With its rugged construction and high-performance capabilities, this motor is ideal for demanding industrial applications.
Top product features:
- Three-Phase Severe Duty Motor, Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Rigid Base Motor Mounting Type
Top product applications:
- Industrial Pumps
- Centrifugal Fans
- Crushers and Grinders
Severe Duty Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1765 rpm, Frame 213T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 9.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class H, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.80
- Package Width: 21.80
- Package Height: 18.00
- Package Weight: 225.00
Product info last updated on January 21, 2026 5:26pm UTC
Category: Motors
