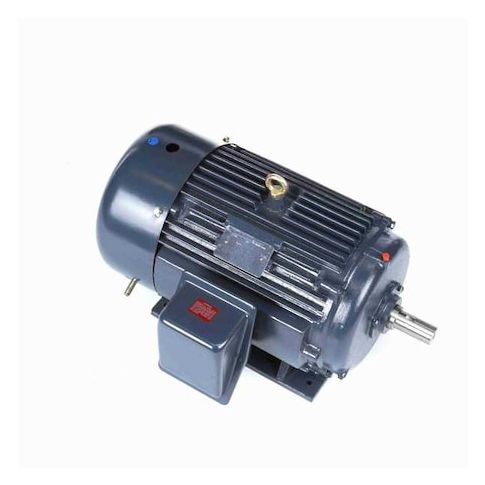

Three-Phase General Purpose Motor, 30 HP, 286TS Frame, 230/460V AC Voltage, 1770 Nameplate RPM MPN:286TSTFCD6026
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G113037686
Three-Phase General Purpose Motor, 30 HP, 286TS Frame, 230/460V AC Voltage, 1770 Nameplate RPM
This 30 HP three-phase general purpose motor from Marathon is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. With a nameplate RPM of 1770 and a high efficiency of 93.6%, this motor provides reliable and cost-effective operation. The totally enclosed fan cooled motor enclosure design ensures safe and quiet operation, while the rigid base motor mounting type provides a stable and secure installation. Suitable for applications with a maximum ambient temperature of 40 degrees C, this motor is ideal for use in a variety of industries, including food processing, chemical processing, and more.
Top product features:
- Three-phase general purpose motor design for industrial applications
- Totally enclosed fan cooled motor enclosure for improved reliability and reduced maintenance
- Ball motor bearings for smooth operation and reduced vibration
Top product applications:
- Industrial Pump Applications
- High-Speed Compressor Systems
- Large HVAC Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 30 HP, Nameplate RPM 1770, Frame 286TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 71.0/35.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCWSE Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, 1,701-1,800
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.77
- Package Width: 28.03
- Package Height: 28.14
- Package Weight: 410.00
Product info last updated on January 17, 2026 6:37am UTC
Category: Motors
