Vector Motor, 44.6 lb-ft, 15 HP, 230/460 V MPN:254THTL5726

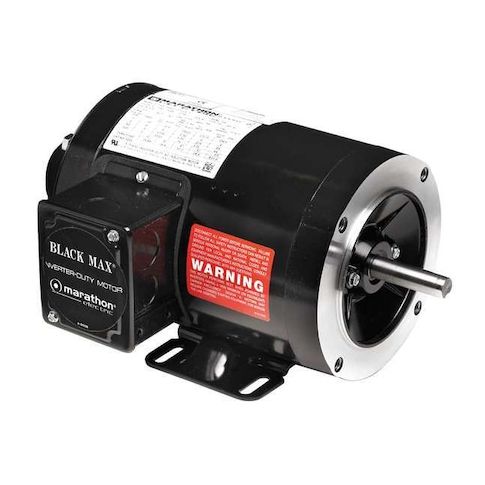

Vector Motor, 44.6 lb-ft, 15 HP, 230/460 V
This robust 15 HP Vector Motor from Marathon is designed for demanding applications, delivering 44.6 lb-ft of torque and 1,765 nameplate RPM. Its three-phase design and NEMA Design A rating ensure efficient operation in continuous duty cycles. Suitable for use in a variety of industries, including manufacturing, oil and gas, and water treatment, this motor provides reliable performance in harsh environments. Its compact 254TC frame and CW/CCW shaft rotation make it ideal for integration into existing systems, while its 1:1,000 speed range and 120 Hz operating frequency allow for precise control and optimization of processes.
Top product features:
- Three-phase operation
- Torque output of 44.6 lb-ft
- Speed range of 1,000:1
Top product applications:
- Machine Tool Applications
- Industrial Automation and Robotics
- Material Handling and Conveyors
Vector Motor, Three Phase, Motor Design Three-Phase, 15 HP, Nameplate RPM 1,765, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 40.0/20.0 A, 254TC Frame, Torque 44.6 ft-lb, Max. Speed 1,800 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 24.00
- Package Height: 22.86
- Package Weight: 235.00
Product info last updated on February 1, 2026 3:23am UTC
Category: Motors
