Vector Motor, 9.0 lb-ft, 3 HP, 230/460 V MPN:182THTY7726

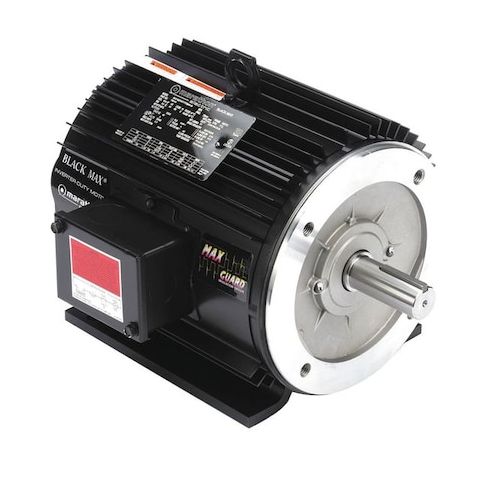

Vector Motor, 9.0 lb-ft, 3 HP, 230/460 V
The Marathon Vector Motor is a powerful and efficient solution for a wide range of industrial applications. With a 3 HP rating and 9.0 lb-ft of torque, this motor is ideal for use in conveyor systems, pumps, and other equipment that requires a high level of performance. Its 1,755 nameplate RPM and 1,000:1 speed range make it perfect for applications where precise speed control is necessary. Suitable for use in temperatures up to 104°F, this motor is designed for continuous duty in demanding environments. Its compact design and reliable operation make it a great choice for industries such as manufacturing, logistics, and food processing.
Top product features:
- Three-phase motor design
- Torque of 9.0 lb-ft
- Speed range of 1,000:1
Top product applications:
- Pump applications
- Air blower applications
- Conveyor systems
Vector Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1,755, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.2/4.1 A, 182TC Frame, Torque 9 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.70
- Package Height: 14.30
- Package Weight: 95.00
Product info last updated on February 4, 2026 6:57am UTC
Category: Motors
