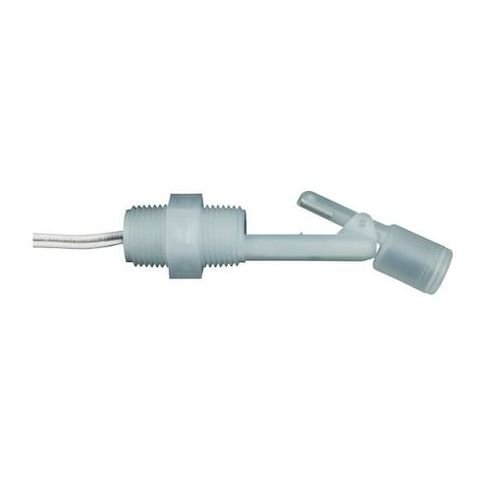

SPST Tank Liquid Level Switch Selectable 240 VAC 100 PSI MPN:M8700
SPST Tank Liquid Level Switch Selectable 240 VAC 100 PSI
The SPST Tank Liquid Level Switch from Madison is a versatile and reliable solution for monitoring liquid levels in a variety of applications. Selectable switch function allows for customization to meet specific needs. Suitable for use in tanks up to 100 PSI, this switch is ideal for chemical, oil, and water storage facilities, as well as industrial processes. Its polypropylene construction and SPST design ensure durability and accuracy. With a maximum operating temperature of 221°F, this switch can withstand harsh environments. Its compact size and easy installation make it a convenient choice for a range of applications.
Top product features:
- Selectable switch function
- Switch is SPST (Single Pole Single Throw)
- Float is made of polypropylene
Top product applications:
- Oil Tank Monitoring
- Liquid Level Indication in Fuel Tanks
- Level Detection in Chemical Storage Vessels
Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in x 1/2 in MNPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 4.3 in, Float Material Polypropylene, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material Polypropylene, Stem Length 2.75 in, Width 2.75 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Conduit Size 1/2 in x 1/2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 4.70
- Package Height: 1.30
- Package Weight: 0.05
Product info last updated on February 7, 2026 1:09pm UTC
Category: Pump Controls
