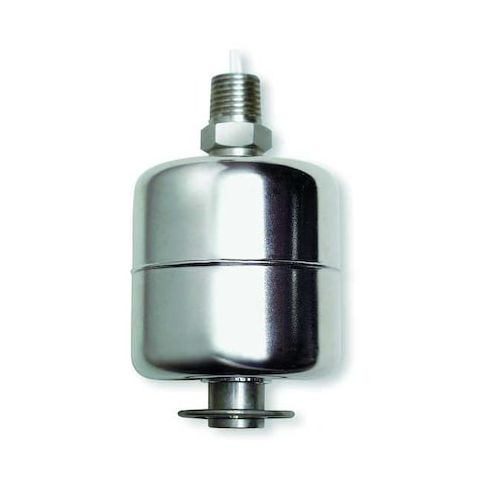

SPST Liquid Level Switch Selectable 240VAC 200 psi MPN:M5600
SPST Liquid Level Switch Selectable 240VAC 200 psi
This SPST liquid level switch is a reliable and versatile solution for monitoring liquid levels in various industrial applications. With a maximum pressure rating of 200 psi and operating temperature range of up to 392°F, it can handle demanding environments. The switch is easily mountable on vertical open tanks and features a 1/4 in NPT connection. Its selectable switch function and stainless steel construction ensure durability and accuracy. Suitable for use in chemical processing, water treatment, and other industries, this switch provides reliable level detection and can be used in a variety of applications where precise monitoring is crucial.
Top product features:
- Selectable switch function allows the user to customize the switch's operation
- The switch has a maximum pressure rating of 200 psi, enabling use in high-pressure applications
- The product is designed for vertical open tank mounting, providing flexibility in installation options
Top product applications:
- Level Monitoring in Water Treatment Plants
- Monitoring Liquid Levels in Chemical Process Tanks
- Detection of Low Liquid Levels in Oil Storage Tanks
Closed Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 1/4 in NPT, Max. Pressure 200 psi, VA Rating 60, Operating Temp. Range 392 Degrees F Max, Overall Length 3.38 in, Float Material 316 Stainless Steel, Float Length 2.1 in, Float Dia. 2.13 in, Stem Material 316 Stainless Steel, Stem Length 2.65 in, Height 3.52 in, Width 2.13 in, Contact Form SPST, Max. Current 0.5 A, Max. Voltage 240 V, Body Material Stainless Steel, Conduit Size 1/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.00
- Package Height: 2.20
- Package Weight: 0.25
Product info last updated on February 18, 2026 6:26am UTC
Category: Pump Controls
