Ultrasonic Sensor, 1 In NPT, 24 VDC MPN:U3M-148

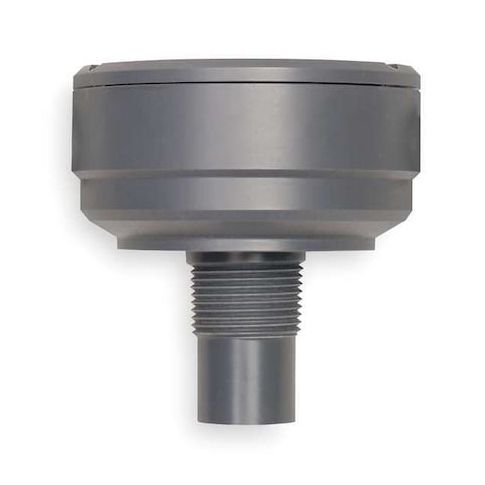

Ultrasonic Sensor, 1 In NPT, 24 VDC
Accurately measure liquid levels in various media types with the Madison Ultrasonic Sensor. This noncontact sensor is ideal for film-causing, solid/semi-solid liquid, and sticky liquid applications, providing a range of 6 ft and an accuracy of +/-0.25% of full scale. Its compact design and 12-degree beam angle make it perfect for use in tight spaces. The sensor operates at 148 kHz, offering a spatial resolution of 0.03 in and a dead band of 4 in. Suitable for use in temperatures from -40°F to 140°F and pressures up to 72.5 psi, this sensor is a reliable solution for various industrial and commercial applications.
Top product features:
- Noncontact measurement capability
- Measures media up to 6 ft away
- Operating frequency of 148 kHz for precise spatial resolution of 0.03 in
Top product applications:
- Liquid Level Monitoring in Tanks and Vessels
- Monitoring Liquid Levels in Industrial Processing Systems
- Measuring Liquid Levels in Chemical Storage Containers
Noncontact Ultrasonic Level Sensor, For Media Type Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid, Antenna Diameter 1 in, Range 6 ft, Connection Size 1 in, Connection Type NPT, Accuracy +/-0.25 Percent of Full Scale, Voltage - Maximum 30V DC, Dead Band 4 in, Beam Angle 12 Degrees , Operating Frequency 148 kHz, Spatial Resolution 0.03 in, Operating Pressure - Maximum 72.5 psi, Media Temperature - Minimum -40 Degrees F, Media Temperature - Maximum 140 Degrees F
Additional Information
- Country of Origin: CA
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.80
- Package Height: 4.70
- Package Weight: 1.10
Product info last updated on January 13, 2026 1:17pm UTC
Category: Industrial Electrical Controls and Automation
