SPST Multi-level Liquid Level Switch Selectable 240VAC 200 psi MPN:ML5555
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1781841

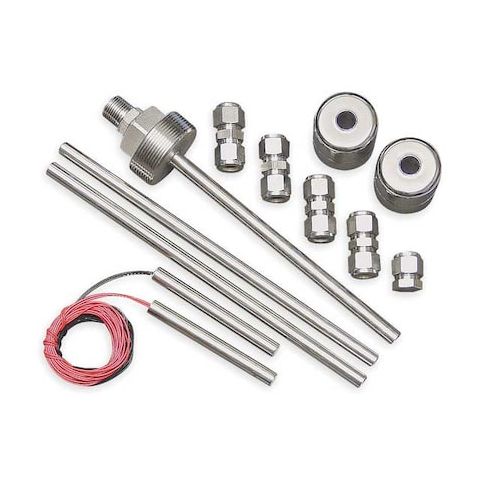

SPST Multi-level Liquid Level Switch Selectable 240VAC 200 psi
Monitor liquid levels in tanks and vessels with precision and flexibility using Madison's Multi-Level Liquid Level Switch. Select from various switch functions to suit your specific needs, and adjust the stem length to accommodate different tank configurations. Built with durable 316 stainless steel, this switch can withstand high temperatures and pressures up to 200 psi. Ideal for use in industries such as chemical processing, oil and gas, and wastewater treatment, this switch provides reliable detection and alerts for liquid levels, ensuring efficient operation and minimizing the risk of overflows and spills.
Top product features:
- Multi-Level Liquid Level Switch allows for adjustable detection of liquid levels within a tank
- Switch Function is Selectable, enabling users to tailor the device's behavior to their specific needs
- Stem Length is Adjustable, allowing for precise installation and alignment with the tank's configuration
Top product applications:
- Oil Tank Monitoring
- Water Treatment Plant Level Control
- Chemical Processing Plant Liquid Level Detection
Multi-Level Liquid Level Switch, Switch Function Selectable, Vertical Open Tank Mounting, Tank Connection Size 2 in NPT, Max. Pressure 200 psi, VA Rating 60, Operating Temp. Range 392 Degrees F Max, Overall Length 46 in, Float Material 316 Stainless Steel, Float Length 2.1 in, Float Dia. 2.13 in, Stem Material 316 Stainless Steel, Stem Length Adjustable, Width 43.19 in, Contact Form SPST, Max. Current 0.5 A, Max. Voltage 240 V, Body Material Stainless Steel, Conduit Size 2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 9.50
- Package Height: 4.70
- Package Weight: 4.00
Product info last updated on February 24, 2026 7:49am UTC
Category: Pump Controls
