Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT MPN:TR-51622-12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5234451
Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 120V AC/DC, DPDT

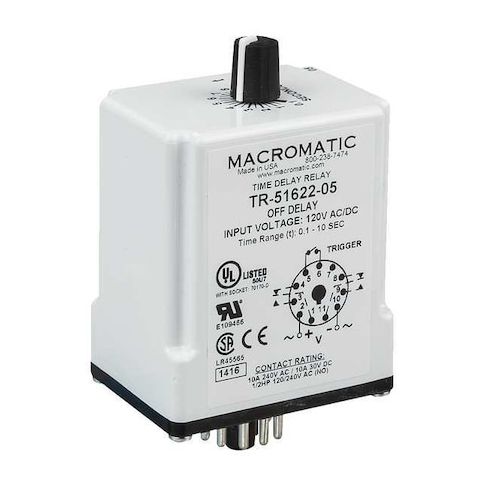

The Macromatic Single Function Time Delay Relay is a versatile and reliable solution for a wide range of applications. This compact, octal-shaped relay features a DPDT contact form and a 10A current rating, making it suitable for use in various industrial and commercial settings. With a minimum time setting of 3 seconds and a maximum time setting of 5 minutes, it provides precise control over timing sequences. The relay's off-delay function and adjustable potentiometer make it easy to customize to specific needs. Suitable for use with 120V AC/DC coils, it's an ideal choice for applications requiring precise timing and control.
Top product features:
- Single Function Time Delay Relay provides a programmable off delay function
- DPDT contact form allows for double pole double throw switching
- Adjustment method via potentiometer enables user-settable delay times
Top product applications:
- Automated Lighting Control Systems
- Industrial Process Control Systems
- Security System Applications
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 3 sec, Maximum Time Setting 5 min, Number of Pins 11, Sealing Enclosed, Mounting Style Plug-In
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.90
- Package Height: 4.40
- Package Weight: 0.25
